SFP+ LR SM 10G SFP Module Duplex 1310nm 10km DDM LC

Brand Name : AEO

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1 piece

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pcs/month

Delivery Time : 5-8 working days

Packaging Details : package and carton

Data rate : 10Gb/s

Operating Temperature : 0°c~70°c

Connector : Duplex LC

Power Supply : +3.3V

Wavelength : 1310nm

Distance : 10km

Contact Now

10G SFP Module SFP+ LR SM Duplex 1310nm 10km DDM LC

Technical Parameters

Supports 9.95 to 11.3Gb/s bit rates

Hot-Pluggable

Duplex LC connector

1310nm DFB transmitter, PIN photo-detector

SMF links up to 10km

2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface

Power Supply :+3.3V

Power consumption<1.5W

Temperature Range: 0~ 70°C

RoHS compliant

System Overview

SFP+-10GB-LR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-LR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

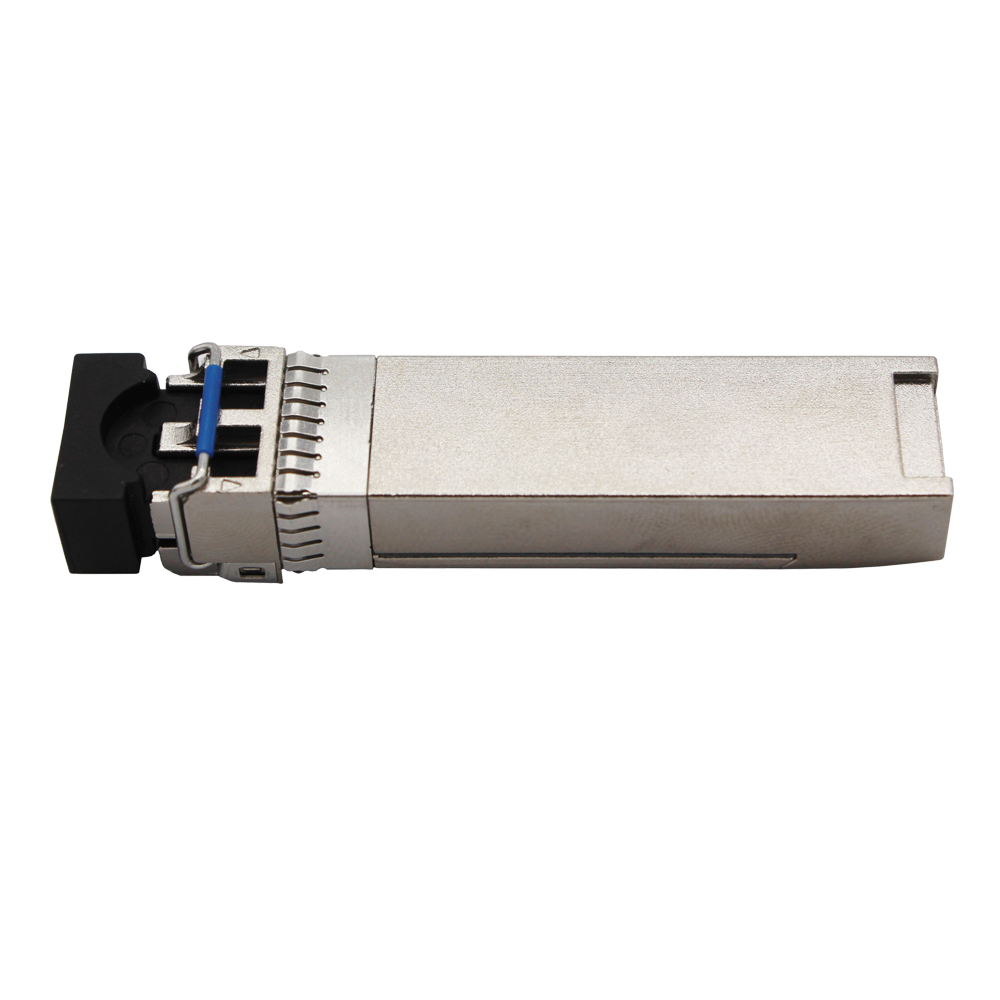

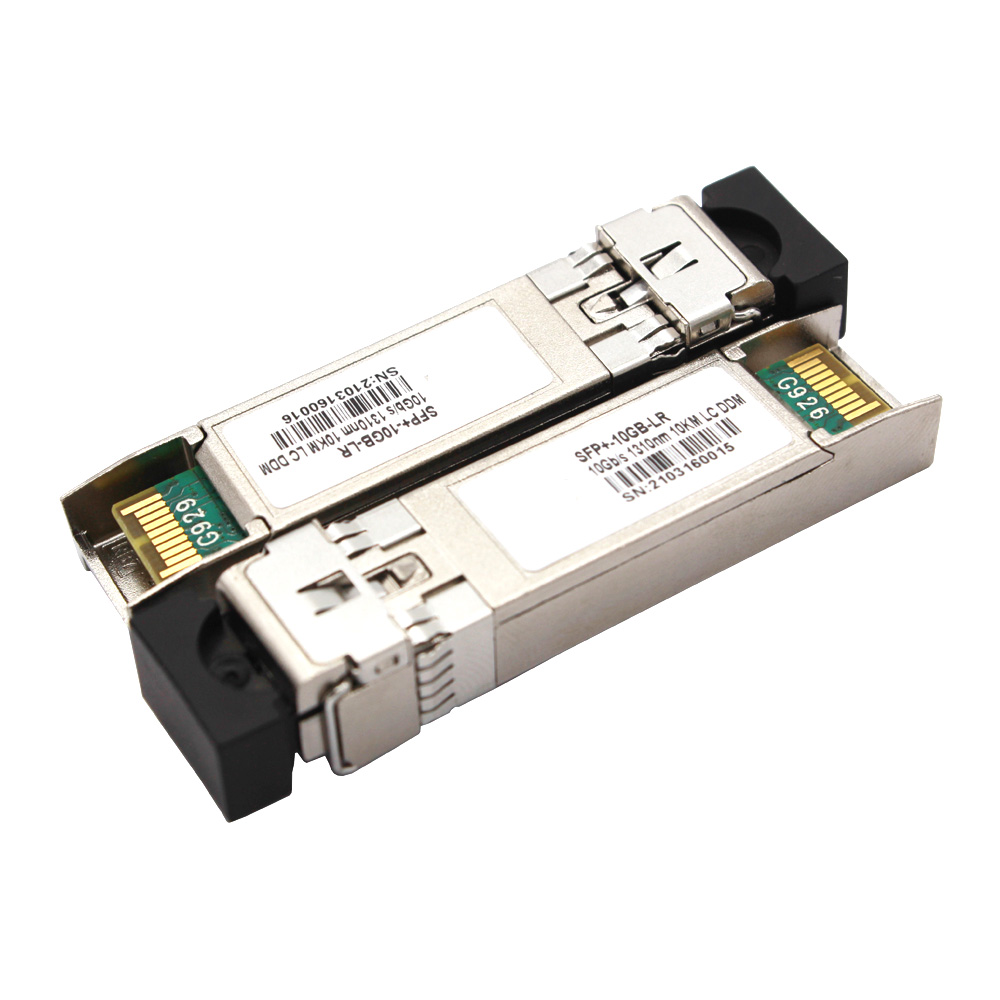

Product Pictures

SFP+ LR SM 10G SFP Module Duplex 1310nm 10km DDM LC

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

SFP+ LR SM 10G SFP Module Duplex 1310nm 10km DDM LC
